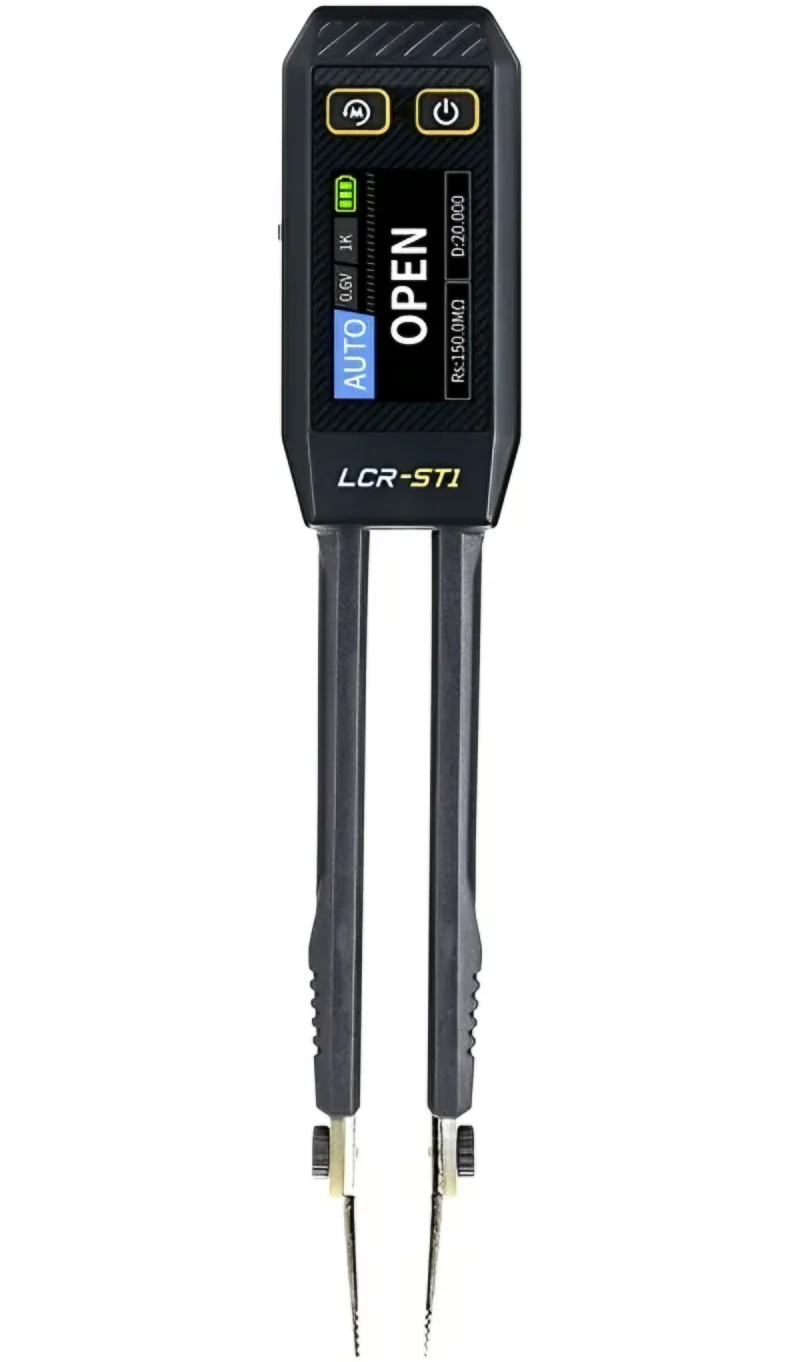

Fnirsi LCR-ST1 Tweezer Type Service Tester

The FNIRSI LCR-ST1 is a multifunctional tweezer-type tester designed for fast and accurate testing of SMD electronic components, making it ideal

for laboratory, service, and production use. The device automatically recognizes the component type and displays both main and auxiliary parameters,

eliminating the need for manual mode selection. It allows measurement of resistance, capacitance, inductance, ESR, diode testing, and circuit continuity verification, while also providing detailed analysis through parameters such as Q, D, Z, and X. It features 3 test frequencies

(100 Hz, 1 kHz, 10 kHz) and test levels of 0.3 V and 0.6 V RMS, ensuring precise results in various applications. The 1.14" HD screen simultaneously displays two parameters for quick analysis, and the interchangeable gold-plated tips enable work even in hard-to-reach areas. The compact design, rechargeable battery, and USB-C charging make the device a portable and efficient tool for professionals.

- Multifunctional tweezer-type tester for SMD components

- Measurements: resistance, capacitance, inductance, ESR, diode, continuity

- Additional parameters: Q, D, Z, X

- Test frequencies: 100 Hz / 1 kHz / 10 kHz

- Test levels: 0.3 V and 0.6 V RMS

- HD display: 1.14", simultaneous display of 2 parameters

- Interchangeable gold-plated tips (straight and curved hook type)

- Data storage and Excel export via USB

- Charging interface: USB-C

- Lithium-ion battery: 250 mAh

- Auto power-off function

- Weight: 41 g

- Interface languages: English and Chinese

- Integrated magnet for temporary attachment to metal surfaces

- Service Tester

- Accessories
